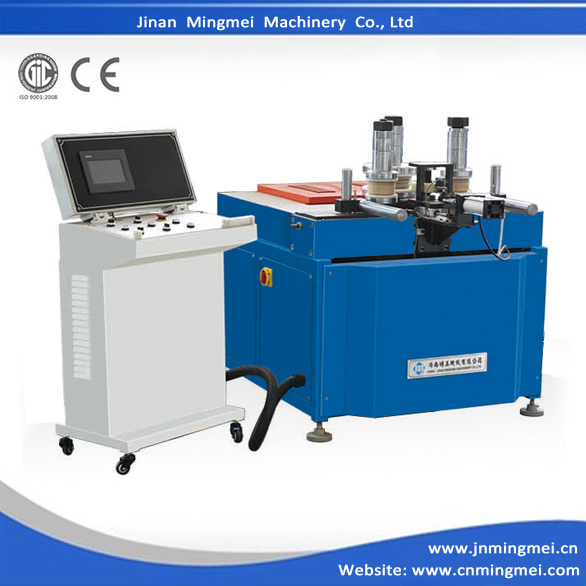

CNC Aluminum Bending Machine

Product name：CNC Aluminum Bending Machine

Item：LW-CNC-200

Details：

1.Main features

1).The machine applies to bending several kinds of metal profiles to appears arc shape, such as iron copper and aluminum.
2).Adopts special arc-processing software, can detect the data of rebound, and then eliminate the rebound.
3). It can make shapes of ellipse, circle and “C”, “U” shapes etc.
4). Adopts computer control system, easy operation.
5). Servo Motor and driver.

6). Different model control box can choose.

2.Technical Parameters

Brand Name	MAG
Model	LW-CNC-100
Power Supply	380V 50Hz or customers specifications
Input Power	4.0KW
Min.Diameter of bending	450mm
Max.width of profile	150mm
Max.diameter of rolls	180mm
Hydraulic cylinder pressure	160KN
Roller-holding shaft diameter	40mm
Rotation speed of shaft	1-8r/min
Positioning precision	0.05mm
Top roll runout	180mm
Over all dimension	1150x1050x1050mm

Your name：
Your E-mail：	*
Message：	* Enter your inquiry details such as product name, color, size, MOQ, FOB, etc.
Code：	*

Previous：LZBD 4200
Next：LW-100

Related Products

APL-300

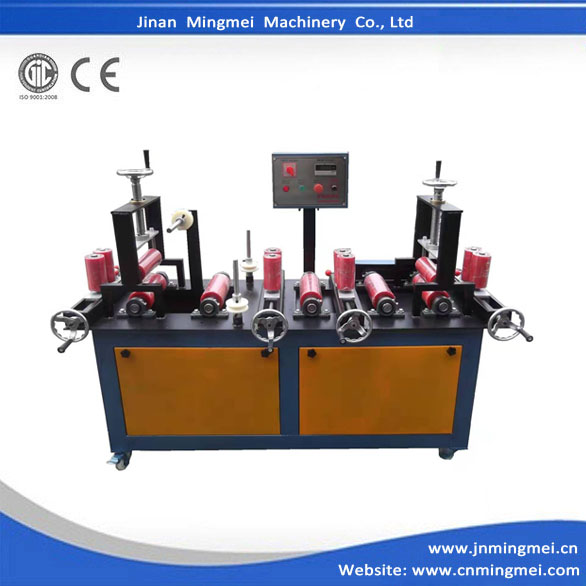

Aluminum/PVC Profile Protection Tape Sticking Machine

LW-100
Bending machine

LZBD 4200

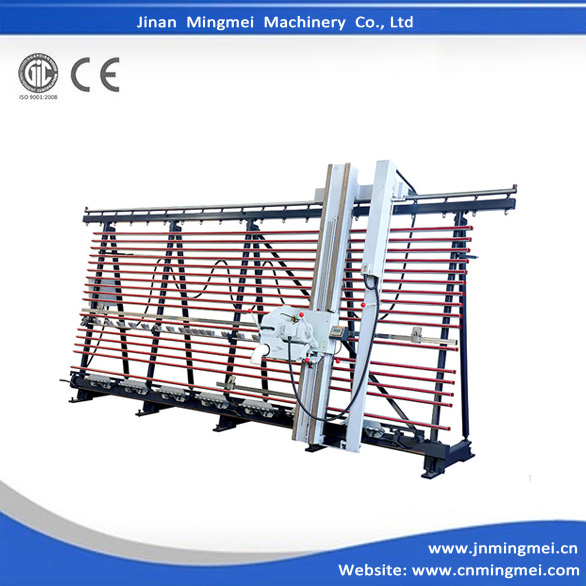

Aluminum Composite Panel Cutting and Grooving Machine
